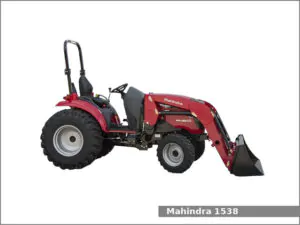

Mahindra 1538

Mahindra 1538The Mahindra 1538 is a 4WD compact utility tractor from the 1500 series. This tractor was manufactured by the Mitsubishi for Mahindra in from 2016 to 2018. The Mahindra 1538 is equipped with 2.7 L four-cylinder diesel engine and one of two transmissions: constant-mesh transmission with dry single disc clutch (8 forward and 8 reverse gears) or hydrostatic transmission (infinite 3-range forward and reverse).

The Mahindra 1538 compact utility tractor used the Mahindra engine. It is a 2.7 L, 2,732 cm2, (166.7 cu·in) four-cylinder natural aspirated diesel engine with 89.0 mm (3.5 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 19.5:1. This engine produced 39.2 PS (28.8 kW; 38.6 HP) at 2,400 rpm of maximum horsepower. The PTO output power is 30.3 PS (22.3 KW; 29.9 HP) for the shuttle transmission and 37.7 PS (27.7 KW; 37.1 HP) for hydrostatic transmission.

The Mahindra 1538 is equipped with hydraulic power steering, wet disc brakes, open operator station with two-post ROPS and 29.0 liters (7.7 US gal.; 6.4 Imp. gal) fuel tank.

Following attachments are available for Mahindra 1538 compact utility tractor:

  • Mahindra 1526L loader
  • Mahindra 1526B backhoe

Mahindra 1538 Specifications

General Specifications
ModelMahindra 1538
Length3,245 mm (127.8 in)
Width1,575 mm (62 in)
Height ROPS: 2,325 mm (91.5 in)
Cab: 2,270 mm (89.4 in)
Wheelbase
Weight Shuttle and ROPS: 1,445 kg (3,185 lbs)
HST and ROPS: 1,440 kg (3,175 lbs)
HST and Cab: 1,645 kg (3,627 lbs)
Fuel tank capacity29.0 liters (7.7 US gal.; 6.4 Imp. gal)
Battery12V, 46Ah
Cabin typeOpen operator station with two-post ROPS
Engine
Engine modelMahindra
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement2.7 L, 2,732 cm2, (166.7 cu·in)
Bore and stroke89.0 mm X 110.0 mm (3.5 in X 4.33 in)
Compression ratio19.5:1
Horsepower39.2 PS (28.8 kW; 38.6 HP) at 2,400 rpm
StarterElectric
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydraulic power
BrakesWet disc
Transmission model
Transmission typeConstant mesh
Gears8 forward and reverse
Transmission model
Transmission typeHydrostatic
GearsInfinite (3-range) forward and reverse
Tires
Front tires Ag: 7×16
Lawn/turf: 27×10.5-15
Industrial: 28×8.5-15
Rear tires Ag:11.2×24
Lawn/turf: 41×14-20
Industrial: 43×16-20
Three-Point Hitch
CaterogyI
Control typePosition control
Lift capacity1,200 kg (2,646 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO spped2,000 rpm
Rear PTO typeIndependent (shuttle) or live (hydrostatic)
Rear PTO spped540 rpm
Hydraulic system
Hydraulic typeOpen center
Valves1 (optional)
Pump flow7.7 gpm (29.1 lpm)
Total flow11.1 gpm (42 lpm)
Steering flow3.4 gpm (12.9 lpm)
