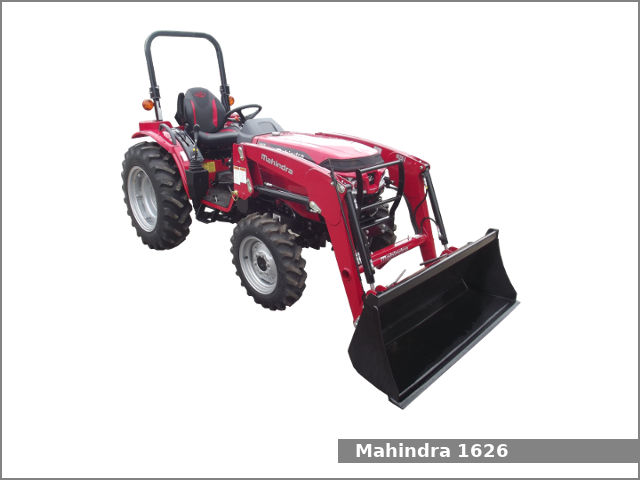

Mahindra 1626

Mahindra 1626The Mahindra 1626 is a 4WD compact utility tractor from the 1600 series. This tractor has been manufactured by the Mahindra since 2018. The Mahindra 1626 is equipped with a 1.3 L three-cylinder diesel engine and one of two transmissions: sync shuttle type transmission with mechanical dry disc clutch or hydrostatic transmission.

The Mahindra 1626 compact utility tractor used the Mitsubishi S3L2 engine. It is a 1.3 L, 1,318 cm2, (80.4 cu·in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 92.0 mm (3.62 in) of the piston stroke. This engine produced 26.2 PS (19.3 kW; 26.0 HP) at 2,500 rpm of maximum output power. The compression ratio rating is 22.0:1.

The Mahindra 1626 is equipped with power steering, wet disc brakes, open operator station with two-post ROPS and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank.

Following attachments are available for Mahindra 1626 compact utility tractor:

  • Mid-mount Mahindra 72 in (1,820 mm) mower deck
  • Mahindra 1526L loader
  • Mahindra 1626B backhoe

Mahindra 1626 Specifications

General Specifications
Model Mahindra 1626
Length 3,080 mm (121.3 in)
Width 1,600 mm (63 in)
Height 2,070 mm (81.5 in)
Wheel base 1,700 mm (67.3 in)
Weight Shuttle: 1,105 kg (2,436 lbs)
Hydro: 1,115 kg (2,459 lbs)
Fuel tank capacity 27.0 liters (7.1 US gal.; 5.9 Imp. gal)
Battery 12V, CCA 540A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Mitsubishi S3L2
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.3 L, 1,318 cm2, (80.4 cu·in)
Bore and stroke 78.0 mm X 92.0 mm (3.07 in X 3.62 in)
Compression ratio 22.0:1
Horsepower 26.2 PS (19.3 kW; 26.0 HP) at 2,500 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Sync shuttle type with mechanical dry disc clutch
Gears 8 forward and reverse
Speed Forward: 17.1 kmh (10.6 mph) Reverse: (0 mph)
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 18.8 kmh (11.7 mph) Reverse: 9.5 (5.9 mph)
Tires
Front tires Ag: 7-16 Lawn/turf: 25×8.5-14
Rear tires Ag: 11.2-24 Lawn/turf: 13.6×16
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity 1,200 kg (2,646 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO spped 2,000 rpm
Rear PTO type Independent or live
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2200 psi (151.7 bar)
Pump flow 7.5 gpm (28.4 lpm)
Total flow 10.7 gpm (40.5 lpm)
Steering flow 3.2 gpm (12.1 lpm)
