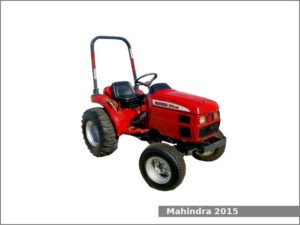

Mahindra 2015

Mahindra 2015The Mahindra 2015 is a 4WD compact utility tractor from the 15 series. This tractor was manufactured by the Mitsubishi for Mahindra from 2003 to 2008. The Mahindra 2015 is equipped with 1.1 L, three-cylinders diesel engine and constant mesh transmission (6 forward and 2 reverse gears) with dry disc clutch or hydrostatic transmission (infinite (2-range) forward and reverse).

The Mahindra 2015 utility tractor used 1.1 L, 1,124 cm2, (68.5 cu·in) three-cylinders diesel engine with 78.0 mm (3.07 in) of cylinder bore and 79.0 mm (3.11 in) of piston stroke. The compression ratio rating is 22.0:1. This engine produced 20.3 PS (14.9 kW; 20 HP) at 2,500 rpm of maximum output power.

The Mahindra 2015 is equipped with hydrostatic power steering, dry shoe brakes, two-post folding ROPS.

Mahindra 2015 Specifications

General Specifications
Model Mahindra 2015
Length 2,700 mm (106.3 in)
Width 1,350 mm (53.1 in)
Height
Wheel base
Weight 825 kg (1818.8 lbs)
Fuel tank capacity
Battery 12V
Cabin type Two-post folding ROPS
Engine
Engine model Mitsubishi S3L
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1124 cm2, (68.59 cu·in)
Bore and stroke 78.0 mm X 79.0 mm (3.07 in X 3.11 in)
Compression ratio 22.0:1
Horsepower 20.3 PS (14.9 kW; 20 HP) at 2,500 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Dry shoe
Transmission model
Transmission type Constant mesh with dry disc clutch
Gears 6 forward and 2 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Tires
Front tires Ag: 7×15; Lawn/turf: 23×8.5-12; Industrial: 23×8.5
Rear tires Ag: 9.5×16; Lawn/turf: 33×12.5-16.5; Industrial:
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity 635 kg (1,400 lbs)
PTO (Power take-off shaft)
Middle PTO type Available as an option
Middle PTO spped 2,000 rpm
Rear PTO type Transmission (gear) or live (hydro)
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1
Pump flow 5.8 gpm (22 lpm)
Steering flow 3.4 gpm (12.9 lpm)
