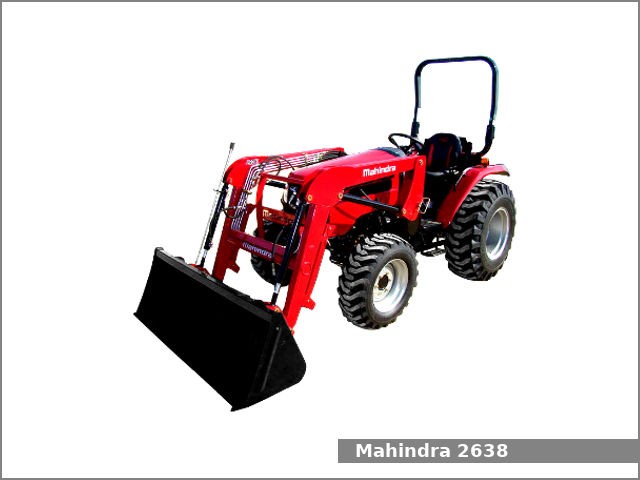

The Mahindra 2638 is a 4WD compact utility tractor from the 2600 series. This tractor has been manufactured by Mahindra since 2018. The Mahindra 2638 is equipped with a 2.7 L four-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Mahindra 2638 compact utility tractor used the Mahindra engine. It is a 2.7 L, 2,732 cm2, (166.7 cu·in) four-cylinder natural aspirated diesel engine with 89.0 mm (3.5 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 37.9 PS (27.9 kW; 37.4 HP) of output power.
The Mahindra 2638 is equipped with power steering, wet disc brakes, two-post folding ROPS or Cab with air-conditioning (optional) and 34.0 liters (9 US gal.; 7.5 Imp. gal) fuel tank.
Following attachments are available for the Mahindra 2638 compact utility tractor:
- Mahindra 2638L loader
- Mahindra 65B backhoe
Mahindra 2638 Specifications
| General Specifications | |
| Model | Mahindra 2638 |
| Length | 3,030 mm (119.3 in) |
| Width | 1,600 mm (63.0 in) |
| Height | 2,400 mm (94.5 in) |
| Wheel base | – |
| Weight |
ROPS: 1,420 kg (3,130 lbs) Cab: 1,520 kg (3,350 lbs) |
| Fuel tank capacity | 34.0 liters (9 US gal.; 7.5 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post folding ROPS or Cab with air-conditioning (optional) |
| Engine | |
| Engine model | Mahindra |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 2.7 L, 2,732 cm2, (166.7 cu·in) |
| Bore and stroke | 89.0 mm X 110.0 mm (3.5 in X 4.33 in) |
| Horsepower | 37.9 PS (27.9 kW; 37.4 HP) at rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Wet disc |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite (3-range) forward and reverse |
| Tires | |
| Front tires | Ag: 7-16 |
| Rear tires | Ag: 11.2-24 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | Position control |
| Lift capacity (at ends) | 1,200 kg (2,650 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Optional |
| Middle PTO speed | 2,000 rpm |
| Rear PTO type | Independent |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Pump flow | 7.6 gpm (28.8 lpm) |
| Steering flow | 4.1 gpm (15.5 lpm) |
| Total flow | 11.7 gpm (44.3 lpm) |
