Mahindra 3510

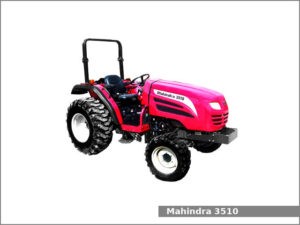

Mahindra 3510The Mahindra 3510 is a 4WD compact utility tractor from the 10 series. This tractor was manufactured by TYM for Mahindra in South Korea from 2002 to 2009. The Mahindra 3510 is equipped with a 1.6 L (100.3 cu·in) three-cylinder diesel engine and one of two transmissions: a synchromesh shuttle transmission with dry disc clutch and 12 forward and 12 reverse gears or a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Mahindra 3510 compact utility tractor used the Mahindra 3A135 engine. It is a 1.6 L, 1,643 cm2, (100.3 cu·in) three-cylinder natural aspirated diesel engine with compression ratio rating of 22.0:1. This engine produced 34.5 PS (25.4 kW; 34.0 HP) at 2,700 rpm of maximum output power.

The Mahindra 3510 is equipped with hydrostatic power steering, wet disc brakes, two-post foldable ROPS and 35.0 liters (9.2 US gal.; 7.7 Imp. gal) fuel tank.

Following attachments are available for the Mahindra 3510 compact utility tractor:

  • Mahindra ML108 loader
  • Mahindra ML112 loader

Mahindra 3510 Specifications

General Specifications
Model Mahindra 3510
Length Gear: 3,530 mm (139.0 in)
Hydro: 2,900 mm (114.2 in)
Width Gear: 1,470 mm (57.9 in)
Hydro: 1,320 mm (52.0 in)
Wheel base
Weight Gear: 1,760 kg (3,880 lbs)
Hydro: 1,390 kg (3,065 lbs)
Fuel tank capacity 35.0 liters (9.2 US gal.; 7.7 Imp. gal)
Battery 12V, 110Ah
Cabin type Two-post foldable ROPS
Engine model Mahindra 3A135
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,643 cm2, (100.3 cu·in)
Bore and stroke
Compression ratio 22.0:1
Horsepower 34.5 PS (25.4 kW; 34.0 HP) at 2,700 rpm
Starter Electric
Oil capacity: 5.8 L (6.1 US. qt, 5.1 Imp. qt.)
Coolant capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Synchromesh shuttle with dry disc clutch
Gears 12 forward and 12 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Front tires Ag: 7-14
Rear tires Ag: 12.4-24
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) Gear: 1,300 kg (2,870 lbs)
Hydro: 945 kg (2,080 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent (hydro)
Middle PTO speed 2,000 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed Gear: 540/1,000 Hydro: 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 29.0 L (30.64 US. qt, 25.52 Imp. qt.)
Valves 1
