Mahindra 3550

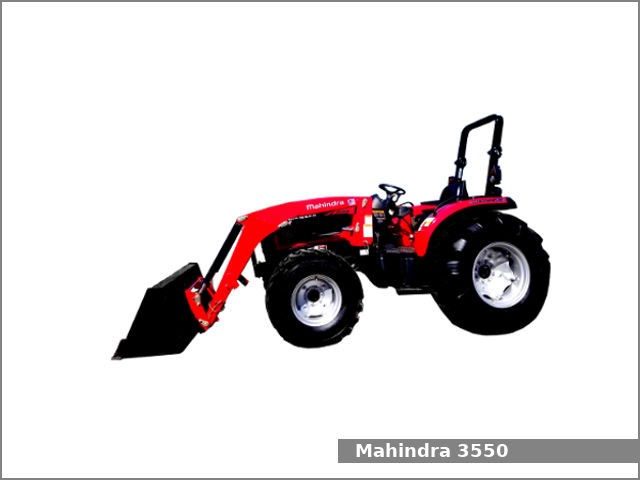

Mahindra 3550The Mahindra 3550 is a 4WD compact utility tractor from the 3500 series. This tractor has been manufactured by Mahindra since 2015. The Mahindra 3550 is equipped with a 2.7 L (166.6 cu·in) four-cylinder diesel engine and one of two transmissions: a power shuttle transmission with wet disc clutch and 12 forward and 12 reverse gears or a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Mahindra 3550 compact utility tractor used the Mahindra engine. It is a 2.7 L, 2,730 cm2, (166.6 cu·in) four-cylinder natural aspirated diesel engine with 89.0 mm (3.5 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 19.5:1. This engine produced 49.6 PS (36.5 KW; 48.9 HP) at 2,800 rpm of output power and 140.5 N·m (14.3 kg·m, 103.5 ft·lb) at 1,800 rpm.

The Mahindra 3550 is equipped with hydrostatic power steering, wet disc brakes, two-post foldable ROPS or cab with air-conditioning (optional) and 42.8 liters (11.3 US gal.; 9.4 Imp. gal) fuel tank.

Following attachments are available for the Mahindra 3550 compact utility tractor:

  • Mahindra 3550L loader
  • Mahindra 50B backhoe

Mahindra 3550 Specifications

General Specifications
Model Mahindra 3550
Length 3,270 mm (128.7 in)
Width 1,915 mm (75.4 in)
Height ROPS: 2,490 mm (98.0 in)
Cab: 2,280 mm (89.8 in)
Wheel base
Weight ROPS with shuttle: 2,240 kg (4,940 lbs)
ROPS with hydro: 2,445 kg (5,390 lbs)
Cab with shuttle: 2,600 kg (5,740 lbs)
Cab with hydro: 2,810 kg (6,190 lbs)
Fuel tank capacity ROPS: 42.8 liters (11.3 US gal.; 9.4 Imp. gal)
Cab: 54.9 liters (14.5 US gal, 12.0 Imp. gal)
Battery 12V, 96Ah
Cabin type Two-post foldable ROPS or Cab with air-conditioning (optional)
Engine
Engine model Mahindra
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.7 L, 2,730 cm2, (166.6 cu·in)
Bore and stroke 89.0 mm X 110.0 mm (3.5 in X 4.33 in)
Compression ratio 19.5:1
Horsepower 49.6 PS (36.5 KW; 48.9 HP) at 2,800 rpm
Torque 140.5 N·m (14.3 kg·m, 103.5 ft·lb) at 1,800 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Tires
Front tires Ag: 9.5-20
Lawn/turf: 31×13.50-15
Industrial: 14×17.5
Rear tires Ag: 16.9-24
Lawn/turf: 21.5L-16.1
Industrial: 19.5Lx24
Three-Point Hitch
Caterogy I
Control type Position and draft control
Lift capacity (at ends) 1,400 kg (3,090 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1
Pump flow 11.0 gpm (41.6 lpm)
Steering flow 5.0 gpm (18.9 lpm)
Total flow 16.0 gpm (60.6 lpm)
