Mahindra 4025

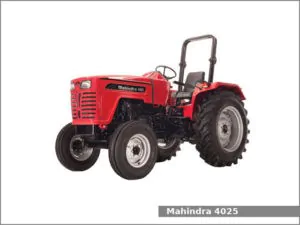

Mahindra 4025The Mahindra 4025 is a 2WD or 4WD utility tractor from the 25 series. This tractor was manufactured by the Mahindra in Maharashtra, India from 2008 to 2018. The Mahindra 4025 is equipped with a 2.7 L four-cylinder diesel engine and sliding mesh transmission with 8 forward and 2 reverse gears.

The Mahindra 4025 utility tractor used the Mahindra MDI 2700R2 engine. It is a 3.7 L, 2,732 cm2, (166.7 cu·in) four-cylinder natural aspirated diesel engine with 89.0 mm (3.5 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 19.5:1. This engine produced 41.6 PS (30.6 kW; 41.0 HP) at 2,300 rpm of maximum horsepower. The Mahindra 4025 is equipped with hydrostatic power steering, dry disc brakes, open operator station with two-post ROPS and 55.0 liters (14.5 US gal.; 12.1 Imp. gal) fuel tank.

Following attachments are available for Mahindra 4025 utility tractor:

  • Mahindra ML232 loader (for 2WD version)
  • Mahindra ML234 loader (for 4WD version)
  • Mahindra ANBH86 backhoe (only for 4WD version)

Mahindra 4025 Specifications

General Specifications
ModelMahindra 4025
Length 2WD: 2,920 mm (115 in)
4WD: 3,270 mm (129 in)
Width 2WD: 1,760 mm (69.3 in)
4WD: 2,280 mm (90 in)
Height
Wheel base
Weight 2WD: 1,990 kg (4,387 lbs)
4WD: 2,245 kg (4,950 lbs)
Fuel tank capacity55.0 liters (14.5 US gal.; 12.1 Imp. gal)
Battery12V, 96Ah
Cabin typeOpen operator station with two-post ROPS
Engine
Engine modelMahindra MDI 2700R2
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement2.7 L, 2,732 cm2, (166.7 cu·in)
Bore and stroke89.0 mm X 110.0 mm (3.5 in X 4.33 in)
Compression ratio19.5:1
Horsepower41.6 PS (30.6 kW; 41.0 HP) at 2,300 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesDry disc
Transmission model
Transmission typeSliding mesh
Gears8 forward and 2 reverse
Tires
Front tires Ag: 6×16 (2WD), 9.5×16 (4WD)
Industrial: 12.x16.5 (4WD)
Rear tires Ag: 12.4×28
Industrial: 16.9×24 (4WD)
Three-Point Hitch
CaterogyII/I
Control typePosition and draft control
Lift capacity1,600 kg (3,528 lbs)
PTO (Power take-off shaft)
Rear PTO typeLive with 2-stage clutch
Rear PTO spped540 rpm
Hydraulic system
Hydraulic typeOpen center
Valves0 or 1
Total flow8.3 gpm (31.4 lpm)
Steering flow4.8 gpm (18.2 lpm)
