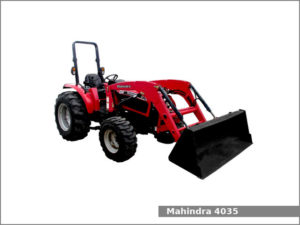

Mahindra 4035

Mahindra 4035The Mahindra 4035 is a 4WD compact utility tractor from the 35 series. This tractor was manufactured by Mahindra in Maharashtra, India from 2009 to 2019. The Mahindra 4035 is equipped with a 1.9 L (115.4 cu·in) three-cylinder diesel engine and one of three transmissions: a synchro shuttle transmission with dry disc clutch and 12 forward and 12 reverse gears, a power shuttle transmission with wet disc clutch and 12 forward and 12 reverse gears or a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Mahindra 4035 compact utility tractor used the Mahindra CE40 engine. It is a 1.9 L, 1,891 cm2, (115.4 cu·in) three-cylinder natural aspirated diesel engine with 89.0 mm (3.5 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 19.4:1. This engine produced 40.5 PS (29.8 kW; 40.0 HP) at 2,800 rpm of output power.

The Mahindra 4035 is equipped with hydrostatic power steering, wet disc brakes, two-post foldable ROPS and 43.0 liters (11.4 US gal.; 9.5 Imp. gal) fuel tank.

Following attachments are available for the Mahindra 4035 compact utility tractor:

  • Mahindra ML120 loader
  • Mahindra 485 backhoe

Mahindra 4035 Specifications

General Specifications
Model Mahindra 4035
Length 3,140 mm (123.6 in)
Width 1,870 mm (73.6 in)
Height 2,506 mm (98.7 in)
Wheel base 1,800 mm (70.9 in)
Weight Gear: 1,980 kg (4,365 lbs)
Hydro: 2,185 kg (4,815 lbs)
Fuel tank capacity 43.0 liters (11.4 US gal.; 9.5 Imp. gal)
Battery 12V, 96Ah
Cabin type Two-post foldable ROPS
Engine
Engine model Mahindra CE40
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.9 L, 1,891 cm2, (115.4 cu·in)
Bore and stroke 89.0 mm X 102.0 mm (3.5 in X 4.02 in)
Compression ratio 19.4:1
Horsepower 40.5 PS (29.8 kW; 40.0 HP) at 2,800 rpm
Starter Electric
Oil capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Coolant capacity: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Synchro shuttle with dry disc clutch
Gears 12 forward and 12 reverse
Transmission model
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Tires
Front tires Ag: 9.5-16
Rear tires Ag: 14.9-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 1,400 kg (3,090 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2970 psi (204.8 bar)
Valves 0 to 2
Pump flow 11.0 gpm (41.6 lpm)
Steering flow 5.0 gpm (18.9 lpm)
