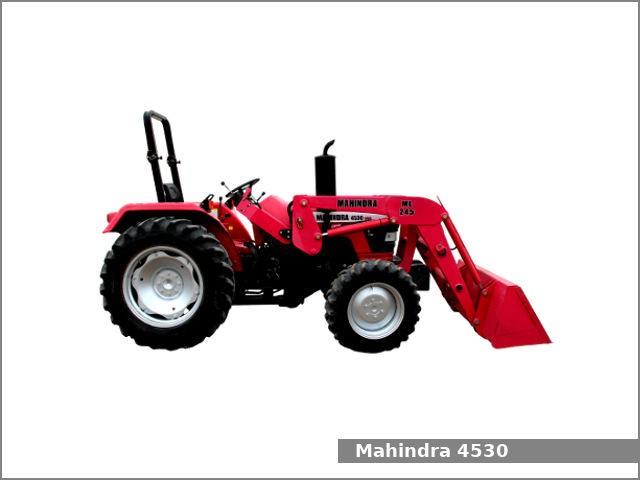

The Mahindra 4530 is a 4WD utility tractor from the 30 series. This tractor was manufactured by Mahindra in Maharashtra, India from 2005 to 2017. The Mahindra 4530 is equipped with a 2.4 L (146.1 cu·in) three-cylinder diesel engine and a synchro shuttle transmission with dry cerametallic lining clutch and 8 forward and 8 reverse gears.
The Mahindra 4530 utility tractor used the Mahindra engine. It is a 2.4 L, 2,394 cm2, (146.1 cu·in) three-cylinder natural aspirated diesel engine with 19.4:1 of compression ratio rating for model from 2005 to 2009, and 18.0:1 after 2010. This engine produced 43.1 PS (31.7 kW; 42.5 HP) at 2,100 rpm of output power (2005-2009) or 44.6 PS (32.8 KW; 44.0 HP) at 2,100 rpm of output power (2010-2017).
The Mahindra 4530 is equipped with hydrostatic power steering, dry disc brakes, two-post foldable ROPS, and 64.7 liters (17.1 US gal.; 14.2 Imp. gal) fuel tank.
Following attachments are available for the Mahindra 4530 utility tractor:
- Mahindra ML245 loader
- Mahindra 595 backhoe
Mahindra 4530 Specifications
| General Specifications | |
| Model | Mahindra 4530 |
| Length | 3,400 mm (133.9 in) |
| Width | 1,850 mm (72.8 in) |
| Height | – |
| Wheel base | – |
| Weight | 2,590 kg (5,710 lbs) |
| Fuel tank capacity | 64.7 liters (17.1 US gal.; 14.2 Imp. gal) |
| Battery | 12V, 96Ah |
| Cabin type | Two-post foldable ROPS |
| Engine | |
| Engine model | Mahindra NE342 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 2.4 L, 2,394 cm2, (146.1 cu·in) |
| Bore and stroke | – |
| Compression ratio rating: |
2005-2009: 19.4:1 2010-2017: 18.0:1 |
| Horsepower |
2005-2009: 43.1 PS (31.7 kW; 42.5 HP) at 2,100 rpm 2010-2017: 44.6 PS (32.8 KW; 44.0 HP) at 2,100 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Dry disc |
| Transmission model | – |
| Transmission type | Synchro shuttle with dry with cerametallic lining clutch |
| Gears | 8 forward and 8 reverse |
| Tires | |
| Front tires |
Ag: 9.5×20 Industrial: 10.5/80×18 |
| Rear tires |
Ag: 13.6×28 Industrial: 16.9×24 |
| Three-Point Hitch | |
| Caterogy | II/I |
| Control type | Position and draft control |
| Lift capacity (at ends) | 1,799 kg (3,967 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Valves | 2 (optional) |
| Pump flow | 10.9 gpm (41.3 lpm) |
| Steering flow | 4.8 gpm (18.2 lpm) |
| Total flow | 15.7 gpm (59.4 lpm) |
