Mahindra 5010

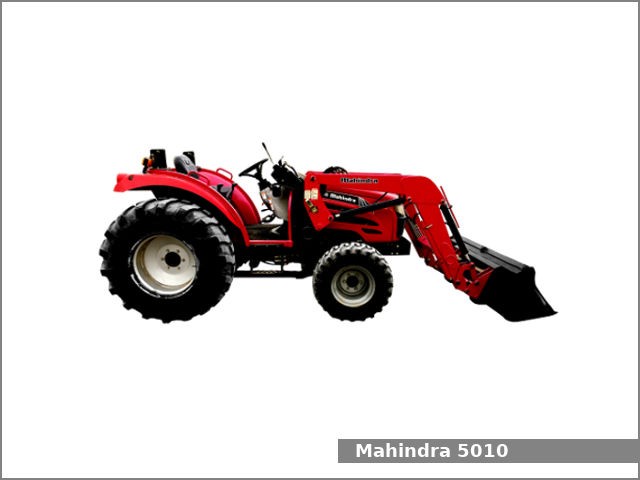

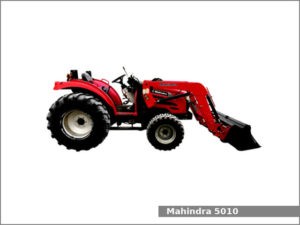

Mahindra 5010The Mahindra 5010 is a 4WD compact utility tractor from the 10 series. This tractor was manufactured by Mahindra in from 2011 to 2015. The Mahindra 5010 is equipped with a 2.4 L (148.6 cu·in) four-cylinder diesel engine and one of two transmissions: a constant mesh transmission with dry disc clutch and 9 forward and 3 reverse gears or a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Mahindra 5010 compact utility tractor used the Daedong 4B243LW engine. It is a 2.4 L, 2,435 cm2, (148.6 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 22.0:1. This engine produced 49.6 PS (36.5 kW; 49.0 HP) at 2,600 rpm of output power.

The Mahindra 5010 is equipped with power steering, wet disc brakes, two-post foldable ROPS or Cab (optional) and 60.6 liters (16 US gal.; 13.3 Imp. gal) fuel tank.

Following attachments are available for the Mahindra 5010 compact utility tractor:

  • Mahindra ML151 loader
  • Mahindra 595 backhoe

Mahindra 5010 Specifications

General Specifications
Model Mahindra 5010
Length 3,400 mm (133.9 in)
Width 1,810 mm (71.3 in)
Height 2,510 mm (98.8 in)
Wheel base
Weight ROPS: 1,740 kg (3,836 lbs)
Cab: 1,850 kg (4,080 lbs)
Fuel tank capacity 60.6 liters (16 US gal.; 13.3 Imp. gal)
Battery 12V, 80Ah
Cabin type Two-post foldable ROPS or Cab (optional)
Engine
Engine model Daedong 4B243LW
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.4 L, 2,435 cm2, (148.6 cu·in)
Bore and stroke 87.0 mm X 102.0 mm (3.43 in X 4.02 in)
Compression ratio 22.0:1
Horsepower 49.6 PS (36.5 kW; 49.0 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Constant mesh with dry disc clutch
Gears 9 forward and 3 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Tires
Front tires Ag: 9.5-16
Rear tires Ag: 14.9-24
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 1,500 kg (3,308 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1
Pump flow 9.5 gpm (36 lpm)
Steering flow 5.0 gpm (18.9 lpm)
