Mahindra eMax 20S

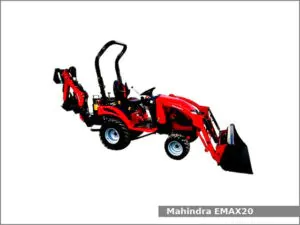

Mahindra eMax 20SThe Mahindra eMax 20S is a 4WD sub-compact utility tractor from the eMax S series. This tractor has been manufactured by Mahindra since 2017. The Mahindra eMax 20S is equipped with a 1.0 L (60.6 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Mahindra eMax 20S sub-compact utility tractor used the Yanmar 3TNV74F engine. It is a 1.0 L, 993 cm2, (60.6 cu·in) three-cylinder natural aspirated diesel engine with 74.0 mm (2.91 in) of the cylinder bore and 77.0 mm (3.03 in) of the piston stroke. This engine produced 19.7 PS (14.5 kW; 19.4 HP) at 3,000 rpm of output power.

The Mahindra eMax 20S is equipped with power steering, wet disc brakes, two-post foldable ROPS or Cab with heater (optional), and 25.0 liters (6.6 US gal.; 5.5 Imp. gal) fuel tank.

Following attachments are available for the Mahindra eMax 20S sub-compact utility tractor:

  • Mid-mount Mahindra M54: 54 in (1,370 mm) mower deck with 3-blades
  • Mahindra eMax 23L loader
  • Mahindra eMax 26B loader

Mahindra eMax 20S Specifications

General Specifications
Model Mahindra eMax 20S
Length 2,380 mm (93.7 in)
Width 1,130 mm (44.5 in)
Height 2,190 mm (86.2 in)
Wheel base
Ground clearance 210 mm (8.3 in)
Weight 680 kg (1,499 lbs)
Fuel tank capacity 25.0 liters (6.6 US gal.; 5.5 Imp. gal)
Battery 12V, CCA 450A
Cabin type Two-post foldable ROPS or Cab with heater (optional)
Engine
Engine model Yanmar 3TNV74F
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 993 cm2, (60.6 cu·in)
Bore and stroke 74.0 mm X 77.0 mm (2.91 in X 3.03 in)
Horsepower 19.7 PS (14.5 kW; 19.4 HP) at 3,000 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Tires
Front tires Lawn/turf: 18×8.5-10
Rear tires Lawn/turf: 26×12-12
Three-Point Hitch
Caterogy IN
Control type
Lift capacity (at ends) 498 kg (1098 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO speed 2,500 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1
Steering flow 2.11 gpm (8 lpm)
Total flow 6.97 gpm (26.4 lpm)
