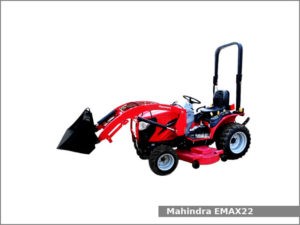

The Mahindra eMax 22 is a 4WD sub-compact utility tractor from the eMax series. This tractor was manufactured by Mahindra in from 2014 to 2016. The Mahindra eMax 22 is equipped with a 1.0 L (61.5 cu·in) three-cylinder diesel engine and one of two transmissions: a gear type transmission with dry disc clutch and 6 forward and 2 reverse gears or a hydrostatic transmission with infinite forward and reverse gears.
The Mahindra eMax 22 sub-compact utility tractor used the Daedong 3C100 engine. It is a 1.0 L, 1,007 cm2, (61.5 cu·in) three-cylinder natural aspirated diesel engine with 75.0 mm (2.95 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. The compression ratio rating is 22.0:1. This engine produced 22.3 PS (16.4 kW; 22.0 HP) at 3,000 rpm of output power.
The Mahindra eMax 22 is equipped with power steering, wet disc brakes, two-post foldable ROPS, and 23.1 liters (6.1 US gal.; 5.1 Imp. gal) fuel tank.
Following attachments are available for the Mahindra eMax 22 sub-compact utility tractor:
- Mahindra eMax 25L loader
- Mahindra eMax 25B backhoe
Mahindra eMax 22 Specifications
| General Specifications | |
| Model | Mahindra eMax 22 |
| Length | 2,600 mm (102.4 in) |
| Width | 1,190 mm (46.9 in) |
| Height | – |
| Wheel base | – |
| Weight | 698 kg (1,539 lbs) |
| Fuel tank capacity | 23.1 liters (6.1 US gal.; 5.1 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post foldable ROPS |
| Engine | |
| Engine model | Daedong 3C100 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.0 L, 1,007 cm2, (61.5 cu·in) |
| Bore and stroke | 75.0 mm X 76.0 mm (2.95 in X 2.99 in) |
| Compression ratio | 22.0:1 |
| Horsepower | 22.3 PS (16.4 kW; 22.0 HP) at 3,000 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Wet disc |
| Transmission model | – |
| Transmission type | Gear type with dry disc clutch |
| Gears | 6 forward and 2 reverse |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Tires | |
| Front tires | Ag: 6×12 |
| Rear tires | Ag: 9.5×16 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity (at ends) | 598 kg (1,319 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | – |
| Middle PTO speed | 2,000 rpm |
| Rear PTO type | Independent (HST) or live (Gear) |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Valves | 1 |
| Pump flow | 4.5 gpm (17 lpm) |
| Steering flow | 2.6 gpm (9.8 lpm) |
