Massey Ferguson 2705

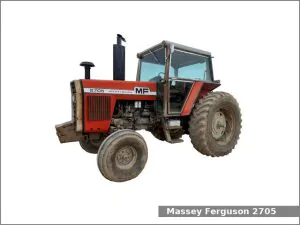

Massey Ferguson 2705The Massey Ferguson 2705 is a 2WD row-crop tractor manufactured by Massey Ferguson from 1978 to 1983. The Massey Ferguson 2705 is equipped with a 5.8 L (354.0 cu·in) six-cylinder diesel engine and one of two transmissions: a three-speed power shift transmission with 24 forward and 6 reverse gears or a mechanical shuttle transmission with 8 forward and 6 reverse gears.

The MF 2705 row-crop tractor used the Perkins AT6.3544 engine. It is a 5.8 L, 5,801 cm2, (354.0 cu·in) six-cylinder turbocharged diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 121.7 PS (89.5 kW; 120.0 HP) at 2,500 rpm of PTO output power.

The Massey Ferguson 2705 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, cab with air-conditioning (standard), or platform configuration with four-post ROPS, and 329.3 liters (87 US gal.; 72.4 Imp. gal) fuel tank.

Massey Ferguson 2705 Specifications

General Specifications
ModelMassey Ferguson 2705
Length4,490 mm (176.8 in)
Width Standard axle: 2,390 mm (94.1 in)
Long axle: 2,990 mm (117.7 in)
Height (cab)2,840 mm (111.8 in)
Wheel base2,670 mm (105.1 in)
Weight (shipping)5,080 kg (11,200 lbs)
Fuel tank capacity329.3 liters (87 US gal.; 72.4 Imp. gal)
BatteryTwo 12V
Cabin typeCab with air-conditioning (standard) or platform configuration with four-post ROPS
Engine modelPerkins AT6.3544
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement5.8 L, 5,801 cm2, (354.0 cu·in)
Bore and stroke98.0 mm X 127.0 mm (3.86 in X 5 in)
Compression ratio16.0:1
Horsepower (PTO)121.7 PS (89.5 kW; 120.0 HP) at 2,500 rpm
Oil capacity:17.0 L (18 US. qt, 15 Imp. qt.)
Coolant capacity:29.3 L (31 US. qt, 25.8 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeHydrostatic power
BrakesDifferential hydraulic wet disc
Final drivePlanetary
Transmission modelMulti-Power
Transmission type3-speed power shift with cerametallic dry disc clutch
Gears24 forward and 6 reverse
Speed Forward: 32.2 kmh (20 mph) Reverse: 15.4 kmh (9.6 mph)
Transmission oil capacity113.6 L (30 US. gal, 25 Imp. gal.)
Transmission model
Transmission typeMechanical shuttle with cerametallic dry disc clutch
Gears8 forward and 6 reverse
Speed Forward: 29.1 kmh (18.1 mph) Reverse: 13.4 kmh (8.3 mph)
Front tires Ag: 9.5L-15, 10.00-16, 11.00-16, 14L-16.1
Rear tires Ag: 16.9-38, 18.4-38, 20.8-38, 23.1-34, 24.5-32, 30.5-32
Three-Point Hitch
Control typePosition control and lower-link draft sensing
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeIndependent with hydraulic clutch
Rear PTO speed540/1000 rpm
Hydraulic system
Hydraulic typeOpen center
Valves2 or 3
Pump flow High-pressure: 16.5 gpm (62.5 lpm)
Low-pressure: 6.4 gpm (24.2 lpm)
