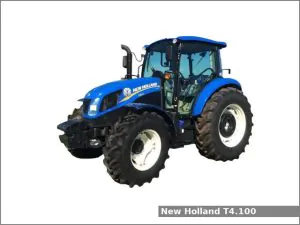

The New Holland T4.100 is a 2WD/4WD utility tractor from the T4 series. This tractor was manufactured by New Holland from 2015 to 2017. The New Holland T4.100 is equipped with a 3.4 L (207.0 cu·in) four-cylinder diesel engine and one of three transmissions: a mechanical shuttle transmission with 12 forward and 12 reverse gears, a power shuttle transmission with 12 forward and 12 reverse gears or a two-speed power shift transmission with 24 forward and 24 reverse gears.
The New Holland T4.100 utility tractor used the FPT F5G engine. It is a 3.4 L, 3,392 cm2, (207.0 cu·in) four-cylinder turbocharged aftercooled diesel engine with 99.0 mm (3.9 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 100.4 PS (73.8 kW; 99.0 HP) at 2,300 rpm of output power.
The NH T4.100 is equipped with power steering, wet disc brakes, VisionView Cab (standard) or Two-post ROPS and 114.7 liters (30.3 US gal.; 25.2 Imp. gal) fuel tank.
Following attachments are available for the New Holland T4.100 utility tractor:
- New Holland 655TL loader
- New Holland 655TL MSL loader
New Holland T4.100 Specifications
| General Specifications | |
| Model | New Holland T4.100 |
| Length |
2WD: 4,140 mm (163 in) 4WD: 4,060 mm (159.8 in) |
| Width | 1,920 mm (75.6 in) |
| Height |
ROPS: 2,700 mm (106.3 in) Cab: 2,590 mm (102 in) |
| Wheel base |
2WD: 2,340 mm (92.1 in) 4WD: 2,280 mm (89.8 in) |
| Weight |
2WD ROPS: 3,170 kg (6,990 lbs) 4WD ROPS: 3,480 kg (7,670 lbs) 2WD Cab: 3,390 kg (7,475 lbs) 4WD Cab: 3,700 kg (8,155 lbs) |
| Fuel tank capacity | 114.7 liters (30.3 US gal.; 25.2 Imp. gal) |
| Battery | 12V |
| Cabin type | VisionView Cab (standard) or Two-post ROPS |
| Engine | |
| Engine model | FPT F5G |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 3.4 L, 3,392 cm2, (207.0 cu·in) |
| Bore and stroke | 99.0 mm X 110.0 mm (3.9 in X 4.33 in) |
| Horsepower | 100.4 PS (73.8 kW; 99.0 HP) at 2,300 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Wet disc |
| Final drive | Inboard planetary |
| Transmission model | – |
| Transmission type | Mechanical shuttle |
| Gears | 12 forward and 12 reverse |
| Transmission model | – |
| Transmission type | Power shuttle |
| Gears | 12 forward and 12 reverse |
| Transmission model | Dual Command |
| Transmission type | Two-speed power shift |
| Gears | 24 forward and 24 reverse |
| Tires | |
| Front tires | Ag: 7.50-16 (2WD), 11.2R24 (4WD) |
| Rear tires | Ag: 16.9R30 |
| Three-Point Hitch | |
| Category | II |
| Control type | Top-link draft sensing |
| Lift capacity (at ends) | 3,334 kg (7,350 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540, 540E, 1000 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Valves | 2 or 3 |
| Pump flow | 16.9 gpm (64 lpm) |
