Wheel Horse 702

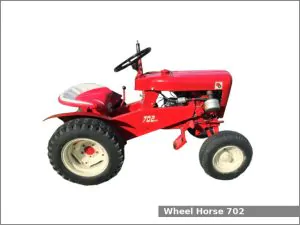

Wheel Horse 702The Wheel Horse 702 is a 2WD garden tractor manufactured by Wheel Horse in South Bend, Indiana, USA during 1962. The Wheel Horse 702 is equipped with a 277 cc (16.9 cu·in) single-cylinder gasoline engine and a gear type transmission with 3 forward and 1 reverse gears.

The Wheel Horse 702 garden tractor used the Kohler K161S engine. It is a 0.3 L, 277 cm2, (16.9 cu·in) single-cylinder natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 64.0 mm (2.52 in) of the piston stroke. This engine produced 7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm of output power.

The Wheel Horse 702 is equipped with power steering, band brakes, open operator station and 3.78 liters (1 US gal.; 0.8 Imp. gal) fuel tank.

Following attachments are available for the Wheel Horse 702 garden tractor:

  • Mid-mount Wheel Horse 810 mm (32 inches) mower deck with 2-blade and manual lift
  • Mid-mount Wheel Horse 910 mm (36 inches) mower deck with 2-blade and manual lift
  • Front-mount Wheel Horse 1,060 mm (42 inches) blade
  • Front-mount Wheel Horse 760 mm (30 inches) snow blower

Wheel Horse 702 Specifications

General Specifications
ModelWheel Horse 702
Length1,520 mm (59.8 in)
Width760 mm (29.9 in)
Height (steering wheel)900 mm (35.4 in)
Wheel base1,040 mm (40.9 in)
Ground clearance200 mm (7.9 in)
Weight188 kg (414 lbs)
Fuel tank capacity3.78 liters (1.0 US gal.; 0.8 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelKohler K161S
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.3 L, 277 cm2, (16.9 cu·in)
Bore and stroke75.0 mm X 64.0 mm (2.95 in X 2.52 in)
Horsepower7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typePower
BrakesBand
Transmission modelWheel Horse Uni-Drive
Transmission typeGear type
Gears3 forward and 1 reverse
Tires
Front tires Lawn/turf: 4.00×8
Rear tires Lawn/turf: 6.00×12
