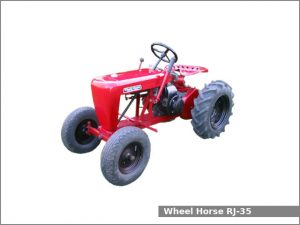

Wheel Horse RJ-35 Ride Away Jr

The Wheel Horse RJ-35 Ride Away Jr is a 2WD garden tractor from the RJ series. This tractor was manufactured by Wheel Horse in South Bend, Indiana, USA from 1955 to 1957. The Wheel Horse RJ35 is equipped with one of two engines: the Kohler K-90 single-cylinder gasoline engine or the Clinton B-1200 single-cylinder gasoline engine and a belt transmission.

The Kohler K-90 engine produced 3.5 PS (2.6 kW; 3.5 HP) at 4,000 rpm of output power and the Clinton B-1200 – 3.7 PS (2.7 kW; 3.6 HP).

Wheel Horse RJ-35 Ride Away Jr. Specifications

General Specifications
Model Wheel Horse RJ-35 Ride Away Jr.
Length
Width
Height
Wheel base
Weight
Fuel tank capacity
Battery
Cabin type Open operator station
Engine
Engine model Kohler K-90
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 145 cm2, (8.8 cu·in)
Bore and stroke 60.0 mm X 51.0 mm (2.36 in X 2.01 in)
Horsepower 3.5 PS (2.6 kW; 3.5 HP) at 4,000 rpm
Starter Electric
Engine
Engine model Clinton B-1200
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 167 cm2, (10.2 cu·in)
Bore and stroke 62.70 mm X 53.97 mm (2.47 in X 2.12 in)
Horsepower 3.7 PS (2.7 kW; 3.6 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model
Transmission type Belt
Gears
Tires
Front tires
Rear tires
