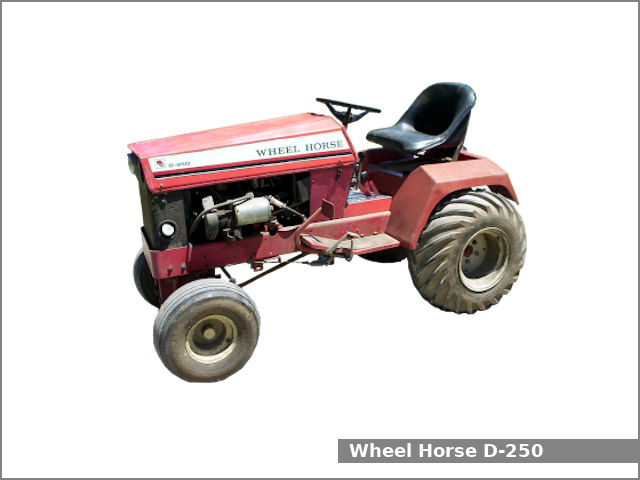

Wheel Horse D-250

Wheel Horse D-250The Wheel Horse D-250 is a 2WD garden tractor from the D series. This tractor was manufactured by Gutbrod for distributor Wheel Horse in Bubingen, Germany from 1976 to 1981. The Wheel Horse D-250 is equipped with a 0.9 L (52.0 cu·in) four-cylinder gasoline engine and a gear type transmission with 8 forward and 2 reverse gears and dry disc clutch.

The WH D250 garden tractor used the Renault 800-01 engine. It is a 0.9 L, 852 cm2, (52.0 cu·in) four-cylinder natural aspirated gasoline engine with 58.0 mm (2.28 in) of the cylinder bore and 80.0 mm (3.15 in) of the piston stroke. This engine produced 20.1 PS (14.8 kW; 19.9 HP) at 3,000 rpm of output power.

The Wheel Horse D-250 is equipped with manual steering, drum brakes, an open operator station, and 14.0 liters (3.7 US gal.; 3.1 Imp. gal) fuel tank.

Following attachments are available for the Wheel Horse D250 garden tractor:

  • Mid-mount Wheel Horse 1,520 mm (60 in) mower deck with 3-blades
  • Front-mount Wheel Horse 1,490 mm (59 in) blade
  • Front-mount Wheel Horse 1,210 mm (48 in) snowblower

Wheel Horse D-250 Specifications

General Specifications
Model Wheel Horse D-250
Length 1,980 mm (78 in)
Width 1,110 mm (43.7 in)
Height 1,140 mm (44.9 in)
Wheel base 1,390 mm (54.7 in)
Weight 526 kg (1,160 lbs)
Fuel tank capacity 14.0 liters (3.7 US gal.; 3.1 Imp. gal)
Battery 12V, 12Ah
Cabin type Open operator station
Engine
Engine model Renault 800-01
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 0.9 L, 852 cm2, (52.0 cu·in)
Bore and stroke 58.0 mm X 80.0 mm (2.28 in X 3.15 in)
Horsepower 20.1 PS (14.8 kW; 19.8 HP) at 3,000 rpm
Starter Electric
Oil type SAE 10W-30, 20W-40
Oil capacity: 2.5 L (2.6 US. qt, 2.2 Imp. qt.)
Spark plug Champion L87YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Drum
Differential lock Mechanical rear
Transmission model Gutbrod
Transmission type Gear type with dry disc clutch
Gears 8 forward and 2 reverse
Speed Forward: 17.1 kmh (10.6 mph) Reverse: 5.8 kmh (3.6 mph)
Tires
Front tires Lawn/turf: 18×8.50-8
Rear tires Lawn/turf: 26×12.00-12
Three-Point Hitch
Category 0
Control type
Lift capacity (at ends)
Hydraulic system
Hydraulic type
Hydraulic capacity 2.5 L (0.7 US. gal, 0.5 Imp. gal.)
Pressure 2100 psi (144.8 bar)
Total flow 2.14 gpm (8.1 lpm)
