Wheel Horse C-125

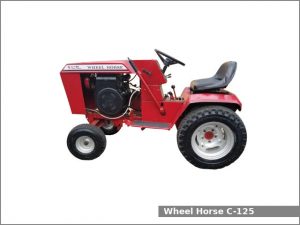

Wheel Horse C-125The Wheel Horse C-125 is a 2WD garden tractor from the C series. This tractor was manufactured by Wheel Horse in South Bend, Indiana, USA from 1980 to 1984. The Wheel Horse C-125 is equipped with a 0.5 L (29.0 cu·in) single-cylinder gasoline engine and one of two transmissions: a belt-driven gear transmission with 6 forward and 2 reverse gears or a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Wheel Horse C-125 garden tractor used the Kohler K301AS engine. It is a 0.5 L, 476 cm2, (29.0 cu·in) single-cylinder natural aspirated gasoline engine with 86.0 mm (3.39 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke. This engine produced 12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm of output power.

The Wheel Horse C-125 is equipped with manual steering, open operator station and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.

Following attachments are available for the C-125 garden tractor:

  • Mid-mount Wheel Horse 1,060 mm (42 inches) mower deck
  • Mid-mount Wheel Horse 1,210 mm (48 inches) mower deck
  • Front-mount Wheel Horse 1,060 mm (42 inches) blade
  • Front-mount Wheel Horse 1,060 mm (42 inches) snow blower

Wheel Horse C-125 Specifications

General Specifications
Model Wheel Horse C-125
Length 1,750 mm (68.9 in)
Width 910 mm (35.8 in)
Height 1,040 mm (40.9 in)
Wheel base 1,150 mm (45.3 in)
Weight (shipping) 272 kg (600 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V, 32Ah
Cabin type Open operator station
Engine
Engine model Kohler K301AS
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 476 cm2, (29.0 cu·in)
Bore and stroke 86.0 mm X 83.0 mm (3.39 in X 3.27 in)
Horsepower 12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plug Champion H-10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model Wheel Horse
Transmission type Belt-driven gear
Gears 6 forward and 2 reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 4.2 kmh (2.6 mph)
Transmission oil capacity 1.9 L (0.5 US. gal, 0.4 Imp. gal.)
Transmission model Eaton 1100
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 6.8 kmh (4.2 mph)
Transmission oil capacity 4.7 L (1.2 US. gal, 1 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×8.50-12
PTO (Power take-off shaft)
Front PTO type Independent with manual clutch
Front PTO speed
