John Deere 3038E (2008-2012)

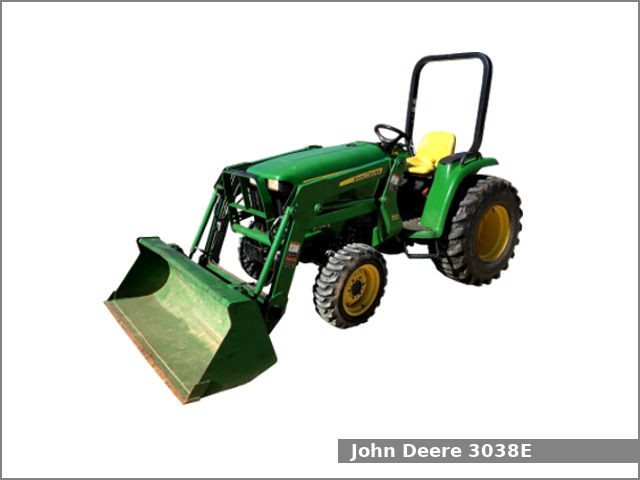

John Deere 3038E (2008-2012)The John Deere 3038E is a 4WD compact utility tractor manufactured by the John Deere in Augusta, Georgia, USA from 2008 to 2019. The first generation of the JD 3038E was manufactured from 2008 to 2012, and the second generation from 2013 to 2019. The JD 3038E compact utility tractor is equipped with a 1.5 L three-cylinder turbocharged diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The John Deere 3038E compact utility tractor used the Yanmar 3TNV84T engine. It is a 1.5 L, 1,496 cm2, (91.3 cu·in) three-cylinder turbocharged diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 36.9 PS (27.1 kW; 36.3 HP) at 2,400 rpm of gross output power and 120.0 N·m (12.2 kg·m, 88.4 ft·lb) of maximum torque.

The John Deere 3038E is equipped with power steering, wet disc brakes, open operator station with two-post ROPS and 24.2 liters (6.4 US gal.; 5.3 Imp. gal) fuel tank.

Following attachments are available for the JD 3038E compact utility tractor:

  • John Deere 305 loader
  • John Deere D160 loader

John Deere 3038E Specifications

General Specifications
Model John Deere 3038E
Length 2,810 mm (110.6 in)
Width 1,470 mm (57.9 in)
Height 2,090 mm (82.3 in)
Wheel base 1,520 mm (59.8 in)
Weight 987 kg (2,176 lbs)
Fuel tank capacity 24.2 liters (6.4 US gal.; 5.3 Imp. gal)
Battery 12V, CCA 500A, Size 22NF
Cabin type Open operator station with two-post ROPS
Engine
Engine model Yanmar 3TNV84T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,496 cm2, (91.3 cu·in)
Bore and stroke 84.0 mm X 90.0 mm (3.31 in X 3.54 in)
Compression ratio 19.0:1
Horsepower 36.9 PS (27.1 kW; 36.3 HP) at 2,400 rpm
Torque 120.0 N·m (12.2 kg·m, 88.4 ft·lb)
Starter Electric
Oil capacity: 4.5 L (4.8 US. qt, 4 Imp. qt.)
Coolant capacity: 4.2 L (4.4 US. qt, 3.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Wet disc
Front axle 3.8 liters (4.0 US. qts, 3.3 Imp. qts)
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 20.0 kmh (12.4 mph) Reverse: 20.0 (12.4 mph)
Transmission oil capacity 21.0 L (5.5 US. gal, 4.6 Imp. gal.)
Tires
Front tires Ag: 7.00-14
Lawn/turf: 27×8.5-15
Industrial: 25×8.5-14
Rear tires Ag: 11.2-24
Lawn/turf: 41×14.0-20
Industrial: 15.00-19.5
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 21.0 L (22.19 US. qt, 18.48 Imp. qt.)
Pressure 2500 psi (172.4 bar)
Pump flow 5.3 gpm (20.1 lpm)
Steering flow 4.0 gpm (15.1 lpm)
Total flow 9.3 gpm (35.2 lpm)
