John Deere 3038E (2013-2019)

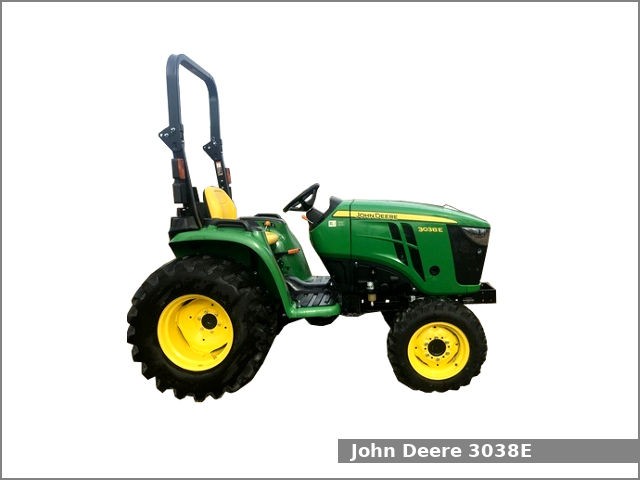

John Deere 3038E (2013-2019)The John Deere 3038E is a 4WD compact utility tractor from the 3E series. This tractor was manufactured by the John Deere in Augusta, Georgia, USA from 2008 to 2019. The first generation of the JD 3038E was manufactured from 2008 to 2012, and the second generation from 2013 to 2019. The John Deere 3038E is equipped with a 1.6 L three-cylinder turbocharged diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The John Deere 3038E compact utility tractor used the Yanmar 3TNV86CT-NJT2 engine. It is a 1.6 L, 1,568 cm2, (95.7 cu·in) three-cylinder turbocharged diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 19.0:1. This engine produced 37.3 PS (27.4 kW; 36.7 HP) at 2,650 rpm of gross output power and 127.0 N·m (13 kg·m, 93.6 ft·lb) of maximum torque.

The JD 3038E is equipped with power steering, wet disc brakes, open operator station with two-post ROPS and 28.5 liters (7.5 US gal.; 6.3 Imp. gal) fuel tank. This compact utility tractor сould be equipped with the John Deere D160 loader.

John Deere 3038E Specifications

General Specifications
Model John Deere 3038E
Length 2,945 mm (115.9 in)
Width 1,440 mm (56.7 in)
Height 2,420 mm (95.3 in)
Wheel base 1,594 mm (62.8 in)
Weight 1,027 kg (2,264 lbs)
Fuel tank capacity 28.5 liters (7.5 US gal.; 6.3 Imp. gal)
Battery 12V, CCA 500A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Yanmar 3TNV86CT-NJT2
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,568 cm2, (95.7 cu·in)
Bore and stroke 86.0 mm X 90.0 mm (3.39 in X 3.54 in)
Compression ratio 19.0:1
Horsepower 37.3 PS (27.4 kW; 36.7 HP) at 2,650 rpm
Torque 127.0 N·m (13 kg·m, 93.6 ft·lb)
Starter Electric
Oil capacity: 4.3 L (4.5 US. qt, 3.8 Imp. qt.)
Coolant capacity: 4.9 L (5.2 US. qt, 4.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Wet disc
Final drive Spur gear
Front axle 3.8 liters (4.0 US. qts, 3.3 Imp. qts)
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 20.8 kmh (12.9 mph) Reverse: 20.8 (12.9 mph)
Transmission oil capacity 20.8 L (5.5 US. gal, 4.6 Imp. gal.)
Tires
Front tires Ag: 7.00-14
Lawn/turf: 27×8.5-15
Industrial: 25×8.5-14
Rear tires Ag: 11.2-24
Lawn/turf: 41×14.0-20
Industrial: 15.00-19.5
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 20.8 L (21.98 US. qt, 18.3 Imp. qt.)
Pump flow 5.3 gpm (20.1 lpm)
Steering flow 4.0 gpm (15.1 lpm)
Total flow 9.3 gpm (35.2 lpm)
